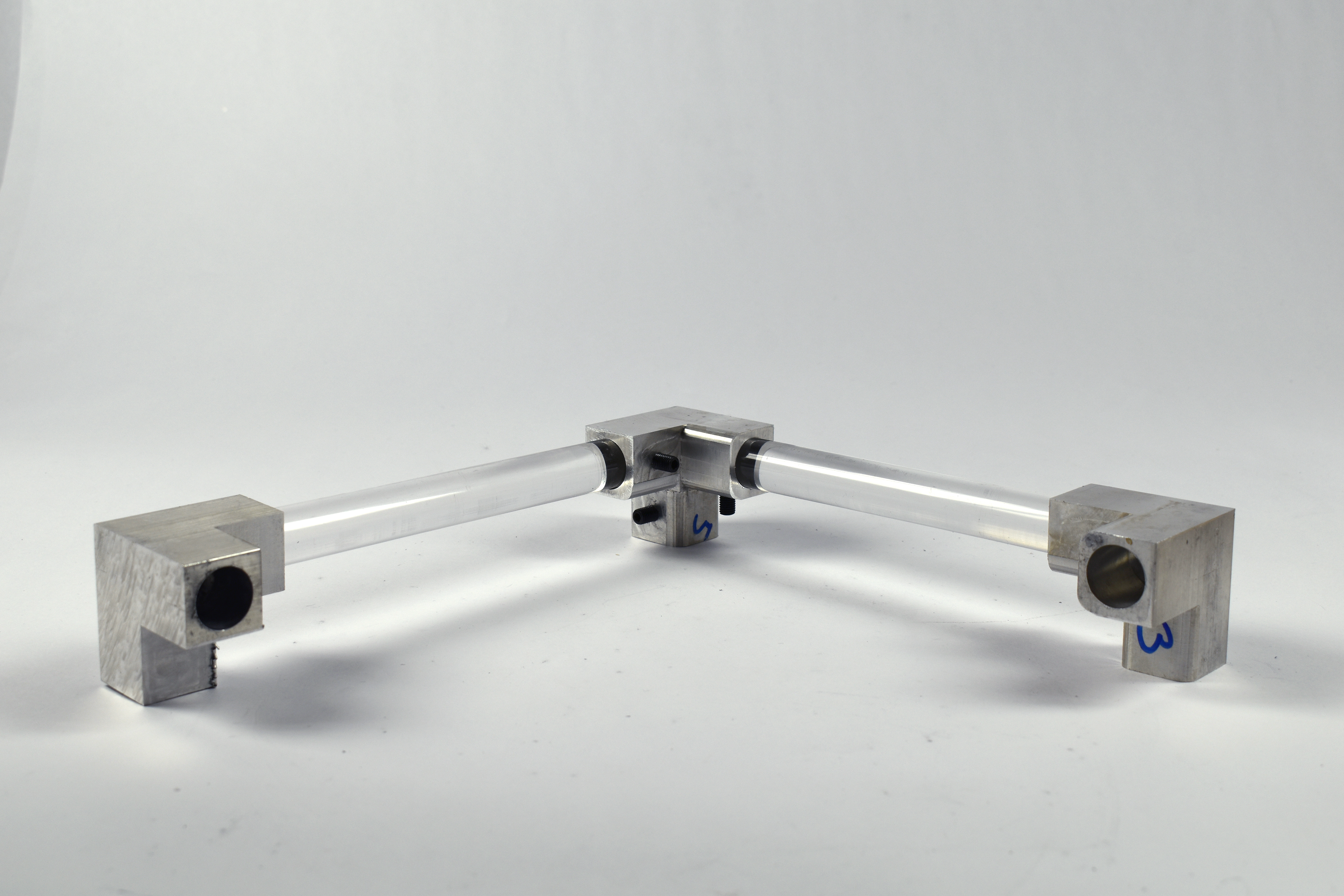

I sought out to make a joint that connects X, Y, and Z stock. However, the project started with the desire to create an object with an easily repeatable process. My solution was to use easily available 2" x 2" stock, and by using the same file multiple times, arrive at the final form. This way, all I would need to do is flip the block and use the same file, without having to sort through files, re-zero to a new origin, or tweak and optimize multiple files at once.
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/9b0d2880-59ab-483d-aca5-8f13a3dab575_rw_3840.png?h=b05a1475c69966652af6825bf6abc49a)
I found the form of the material removed by dividing the negative space of a simplified joint into three equal parts.
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/fcc6f250-5933-4562-90be-ea51b64d0c0d_rw_1920.png?h=439d98e9c2361b15323c21b7bf45eb8c)
After first cut
During second cut
After second cut
Ready for Final cut
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/062feb6f-08bd-44f1-b381-e4f0559bd296_rw_1920.png?h=c4be1ec57efdb2c19c7cdbcf01688eea)
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/430f62d8-2894-422a-9391-9463c2396a11_rw_3840.png?h=5c5dbae7c20bce1da64f0ad978fc127b)
OTHER WORKS
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/5e71c11e-9f3a-4764-b609-746de9c01346_rw_3840.png?h=fece652e2b27806bb8350d3e6ed306ce)
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/e8dc1902-04b1-4a23-8b0c-6a221d93ac90_rw_3840.png?h=2ed341f630062118c409d676f3036160)
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/9424a655-f6fa-4e72-9cb6-53f8ae987c23_rw_3840.png?h=7b7733c308c53fe27630463e49e5b88b)
![](https://cdn.myportfolio.com/4e1ba19e-cc36-4ef4-96c4-ab7707f7d993/d3c5f4c9-5540-443f-bf0b-116d4e7b2004_rw_3840.png?h=e776f4c1d3d1993a299eb15f6a0f903b)

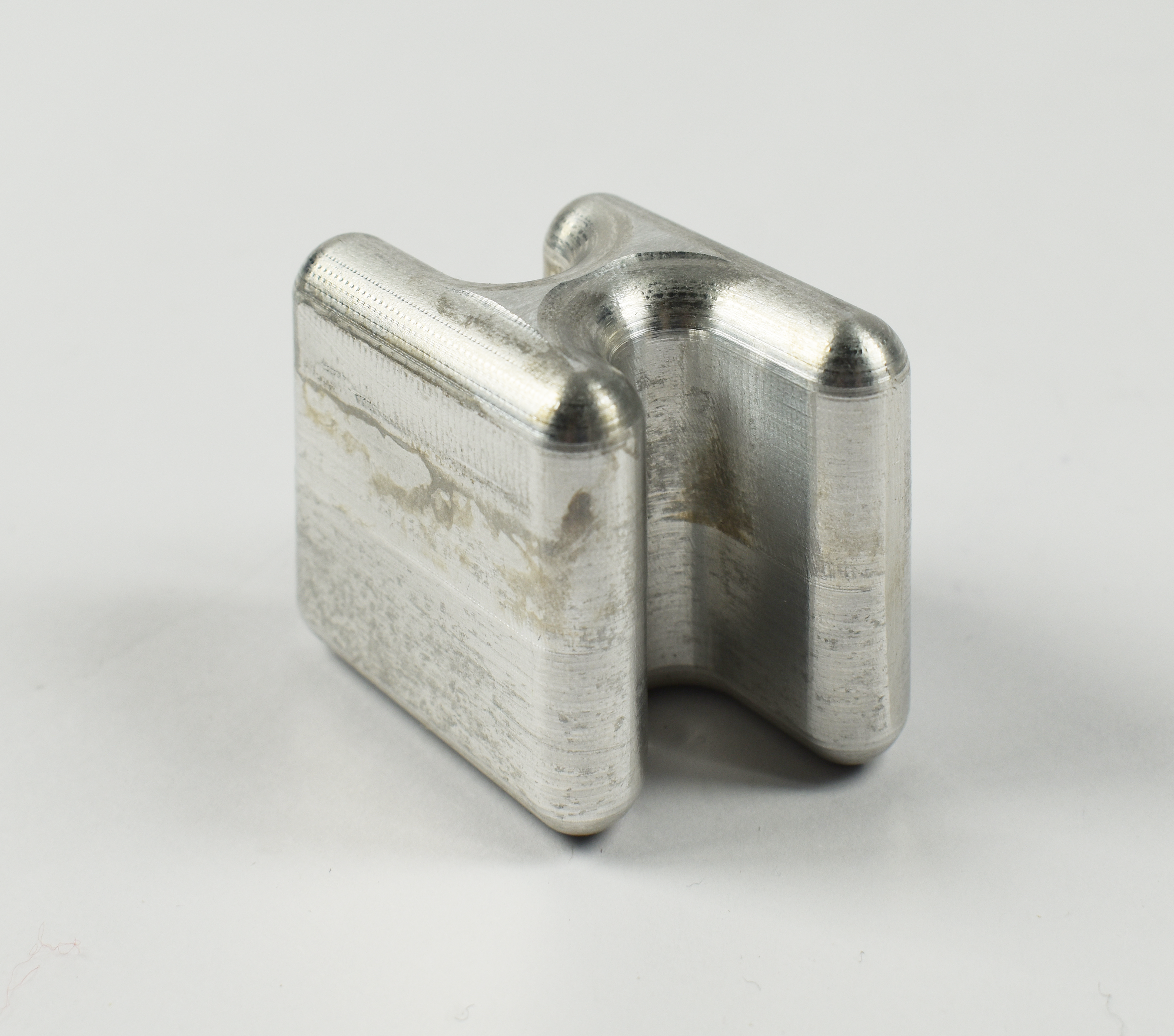

Inspired by the repeatability that the CNC creates, I made a reimagined brick. The module can connect both horizontally and diagonally.
